HD Night Vision Astronomical 150X Refractive With Phone Clip Outdoor150X Telescope
SPECIFICATIONS
Water Resistance Level: IPX4
Type: Monocular
Objective Lens Diameter: 70mm
Model Number: F30070&F30070B
Material: Metal
Magnification: 15X-150X
Lens Coating Description: FMC
Focus Type: Detached
Field of View: 1000m
F30070B Type: without phone adapter
F30070B: orange
F30070 Type: without phone adapter
F30070: wihite
Eyepiece diameter: 5mm
Brand Name: WALLY SKY
Specification of F30070B (orange)
Specification
Item Type: Astronomy Telescopes
Max Magnification: 150X
Objective Lens Diameter: 70 mm
Focal Length: 300 mm f/4
Oblique Mirror: 48 degrees
Eyepiece: H6 mm, H20 mm

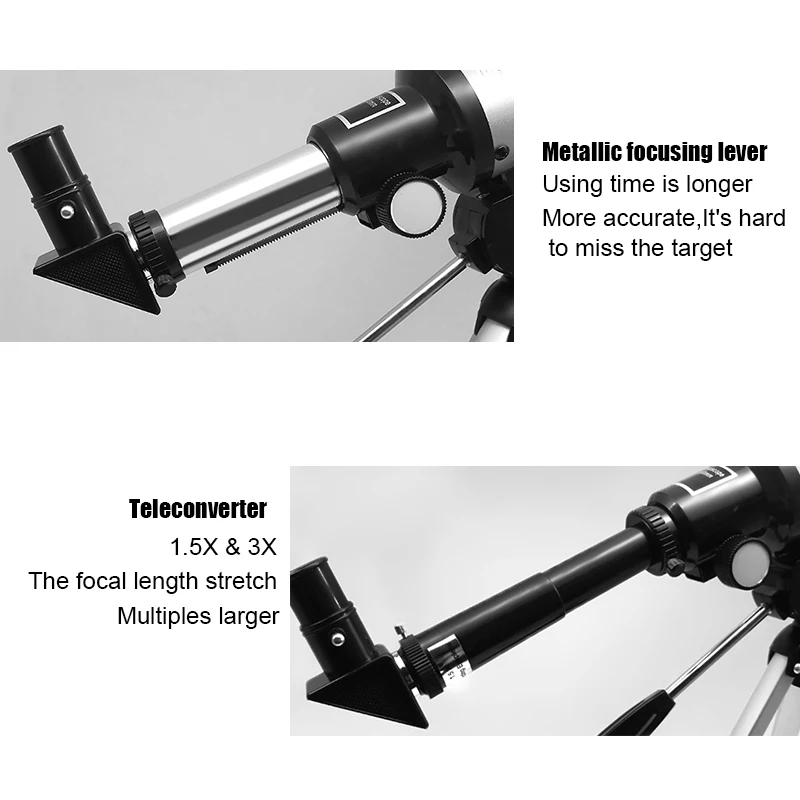

Barlow Lens: 3X
Positive Lens: 1.5X
Warp / Weft Machine and Aluminum Tripod
The Most Highly of Tripod: 115 cm
Product Size (L x W x H): 315 x 105 x 105 mm / 12.4 x 4.13 x 4.13 inches
Package Size (L x W x H): 465 x 220 x 115 mm / 18.31 x 8.66 x 4.53 inches
Package Weight:2 kg
Note
1. Multiples of course are not the only, and it depends on the combination of factors aperture and focal length. (For example, if the window is big, the natural light is good, and the view is clear.)
2. When use 3X Barlow lens, installed Barlow lens first, and then install the eyepiece. ( When install the Barlow lens, we need to move out the lid on the installation device of eyepiece.)
3. We just can choose one eyepiece to install at the same time, so does the Barlow lens.
Package Included
1x astronomical telescope
2x eyepiece (H6, H20)
1x tripod
2x barlow Lens
1x moon Filter
1x mobile phone adapter
1x English user manual
About Configuration

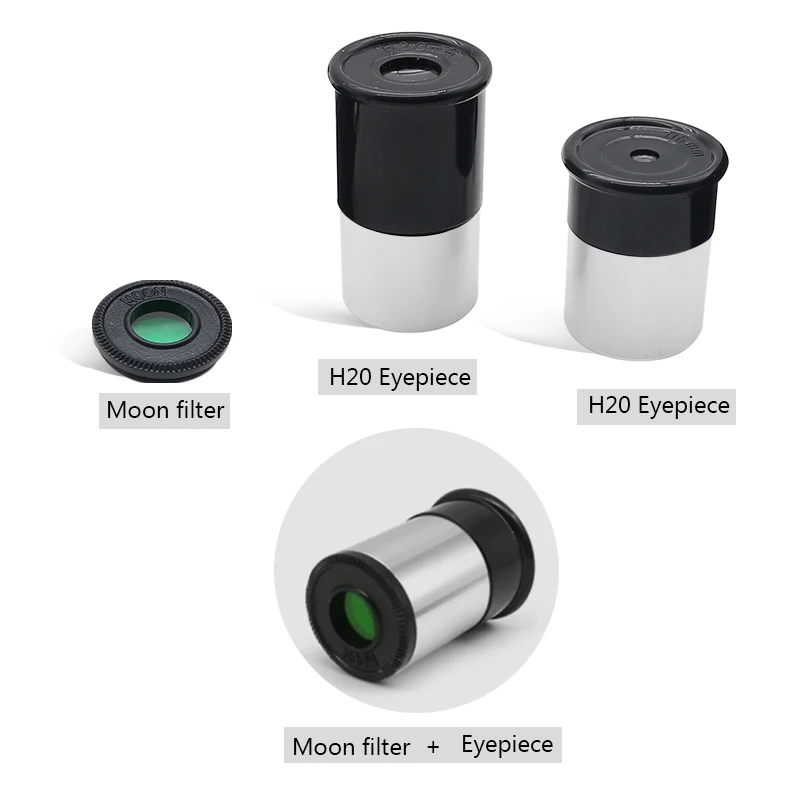

1. Moon Filter: Because there is a lot of reflected light interfering our observation of full moon, so we can use the moon filter to avoid the interference, and then the moon's surface will be seen more clearly.
2. Please screw the moon filter into the threaded of eyepiece lens' lower part, and then connect the eyepiece lens with zenith lens.
Installation Step
1. Put up tripod, then attach the lens tube.

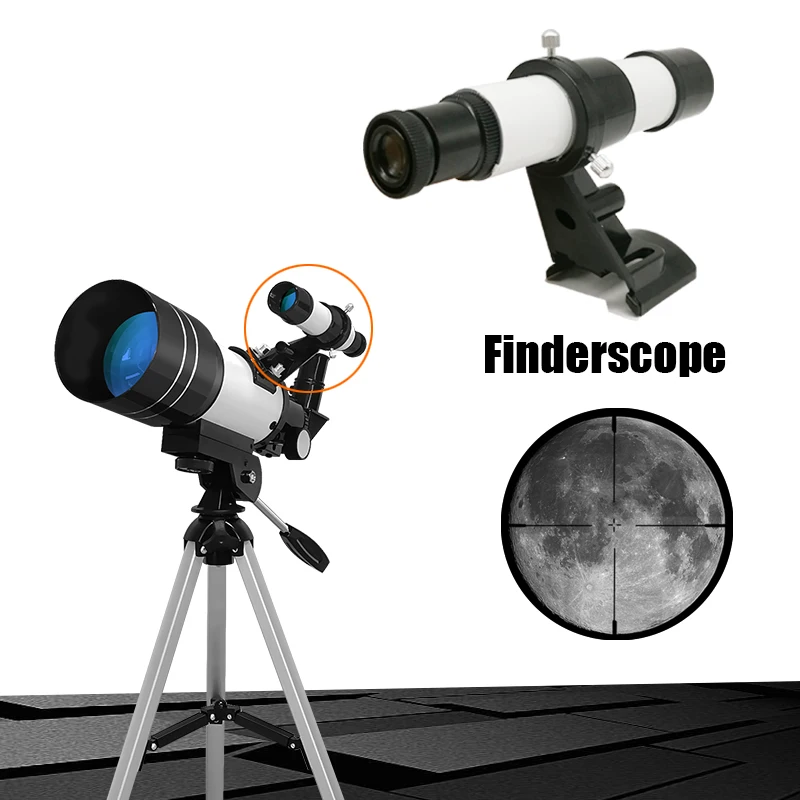

2. After the tube is fixed, install the finderscope (for preliminary search of the target object), then install the eyepiece (choose one from the two).
3. After find out the big goal, then debug with different eyepieces.
Mobile phone is NOT included.
Specification of F30070 (white)
Packing List:
1 piece Telescope Tube
1 piece 1.5X Erecting Eyepiece
1 piece 3X Barlow Lens
1 piece Finder Scope
1 piece Tripod(15inch height)
1 piece H20mm Eyepiece
1 piece H6mm Eyepiece
1 piece Moon Filter
1 piece Diagonal Lens
